Basic Info

Model No.: SA-A20B07B

Technology: Infrared

Style: Bullet Camera

Type: CCTV Camera, Infrared Waterproof Camera

Sensor: CMOS

HDMI Format: 1080P

Certification: CE, FCC, CCC, RoHS, ISO9001: 2000, SGS

Feature: Waterproof / Weatherproof, High Definition, Mini Size

Effective Distance: 10-30m

Sensor Size: 1/3 inch

Remote Control: With Remote Control

Horizontal Resolution: Other

Kind: Manual Focus Lens

Name: 2MP AHD IR Mini-Bullet Camera

Material: Metal

Shape: Bullet

Lens: 3.6mm

Waterproof: IP66

Definition: 1080P

Resolution: 2MP

Voltage: DC12V/1A±10%

Additional Info

Packaging: gift box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air,By express

Place of Origin: Shenzhen,China

Supply Ability: 200000

Certificate: ISO9001

HS Code: 8523501390

Port: She Kou,Yan Tian

Product Description

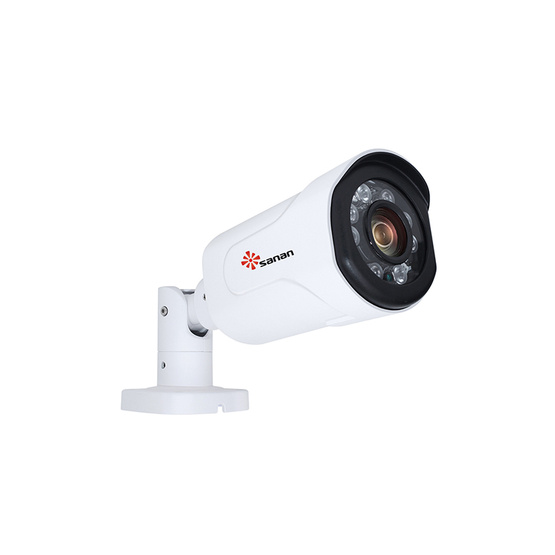

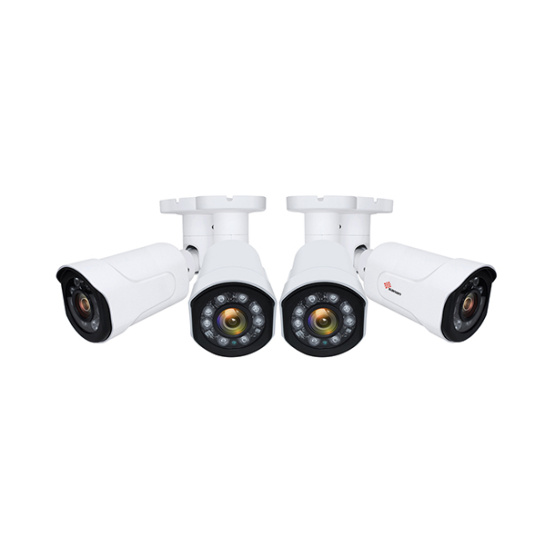

Starlight 2MP AHD Camera infrared Night Vision

Product introduction

Question:

What is the principle of the camera?

Answer:

The working principle of the camera is roughly as follows:

The optical image generated by the scene through the lens (LENS) is projected onto the surface of the image sensor, and then converted into an electrical signal, converted into a digital image signal after A/D (analog-to-digital conversion) conversion, and then sent to the digital The processing is processed in the signal processing chip (DSP), and then transmitted to the computer through the USB interface for processing, and the image can be seen through the display.

Product specifications

(Bullet Fixed Focus Camera) Product name: 2MP AHD IR Mini-Bullet Camera

(Fixed Focus Bullet Camera HD) Material: Metal

(Bullet Fixed Focus Journal Camera) Function: IR(36 pcs 10mil  Infrared LED) & Waterproof (IP66)

(Fixed Focus Bullet Camera IR) IR Range: 20M

(Fixed Focus Bullet Surveillance Cameras) Lens: Default 3.6mm lens (6/8mm Optional)

(Fixed Focus Analog Bullet Cameras) Power supply: DC12V/1A±10%

0.001Lux@(F1.2,AGC ON),0LUX with IR
4-in-1 AHD/TVI/CVI/CVBS optional output(Default AHD)
