Basic Info

Model No.: SA-I50D03C

Technology: Infrared

Style: Dome Camera

Sensor: CMOS

Certification: CE, FCC, RoHS, ISO9001: 2000, SGS

Feature: Waterproof / Weatherproof, High Definition

Effective Distance: 10-30m

Sensor Size: 1/3 inch

Remote Control: With Remote Control

Type: IP Camera, Infrared Waterproof Camera

HDMI Format: Other

Horizontal Resolution: Other

Kind: Manual Focus Lens

Name: 5MP IR Eyeball Network Camera

Material: Metal

Shape: Dome

Lens: 3.6mm

Waterproof: IP66

Compression: H.264/H.265

Definition: 2592x1944

Resolution: 5MP

Voltage: DC12V±10%

Additional Info

Packaging: gift box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air,By Express

Place of Origin: Shenzhen,China

Supply Ability: 200000

HS Code: 8523501390

Port: She Kou,Yan Tian

Product Description

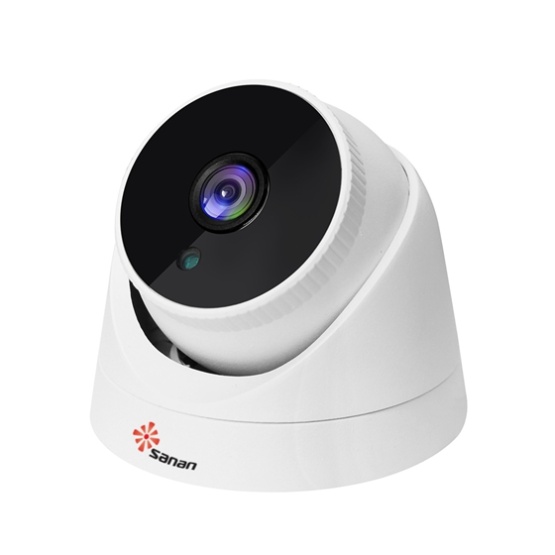

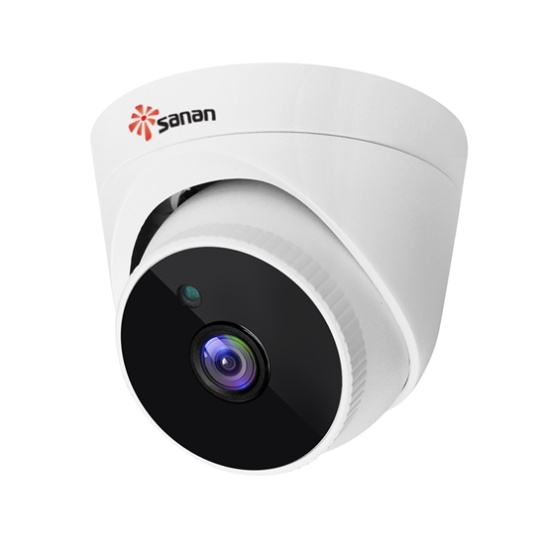

Indoor 5MP IP Dome CCTV Camera

The purpose of camera debugging in an embedded system is to enable the camera's mechanical and electrical parameters to produce the highest quality image data while meeting system requirements. An imaging system involving hardware and software, the quality of the image is often affected by many factors from external interference and its own limitations, which will produce noise and imaging unevenness. The factors from the software level are often the problems of the algorithm. The problems at this level can be solved by the mathematical calculation of theoretical analysis. The factors from the hardware level should be debugged by the instrument, and can be solved by the experimental measurement and analysis. Therefore, the quality of the hardware directly affects the quality of the software, which affects the final image quality. To debug the camera is to eliminate interference as much as possible from the hardware level.

IP Dome camera Specs:

HI3516EV300 high performance processor;

1/2.8 "5.0m Pixel SONY IMX335 image sensor;

Minimum illumination 0. color, 0. black and white;

80dB wide dynamic range, with good wide dynamic effect;

Support h. 265 Main profile/ h. 264 Main profile/ m-jpeg encoding, realize low bitstream hd image quality;

Three-bit stream output (2 channels h. 265/ h. 264+1 channels MJPEG);

The maximum resolution can reach 2592x194@15fps;

Support photoresistive signal linkage ICR day and night switch;

Intelligent 2D and 3D noise reduction algorithm, clean and fresh picture at night;

Intelligent AE exposure algorithm, fast convergence of strong light, see the source;

Support mobile detection and alarm linkage SMTP, FTP server;

Support standard Onvif2.4 and RTSP real-time stream cooperator;

Compatible with haikang, xiongmai, Milestone, Nuuo and other platforms;

Support P2P remote of Android and IOS phones;

Support 2KV lightning surge protection, 16KV electrostatic protection;
