4G LTE Security Camera Outdoor

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,EXW,CIP
Min. Order: 5 Bag/Bags
Delivery Time: 7 Days

Basic Info


Model No.: SA-I20AT

Technology: Wireless

Style: Bullet Camera

Type: IP Camera

Sensor: CMOS

HDMI Format: 1080P

Certification: CE, FCC, CCC, RoHS, ISO9001: 2000, SGS

Feature: Waterproof / Weatherproof, High Definition, Mini Size

Effective Distance: 10-30m

Sensor Size: 1/3 inch

Remote Control: With Remote Control

Horizontal Resolution: Other

Kind: Manual Focus Lens


Additional Info


Packaging: gift box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air

Place of Origin: Shenzhen,China

Supply Ability: 200000

Certificate: CE /FCC/ ROHS

HS Code: 8523501390

Port: She Kou,Yan Tian


Product Description

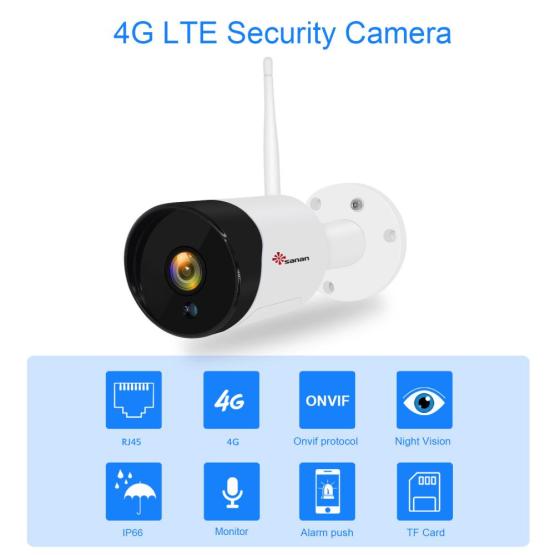

4G LTE Security Camera Outdoor



Bullet Fixed Focus Camera, Bullet Fixed Focus CMOS Camera, Bullet Fixed Focus Webcam, HD Bullet Fixed Focus CCTV Camera, Fixed Focus Bullet Webcam Outdoor, Infrared Fixed Focus Bullet Cameras features:


The Sanan camera is support operates on 4G mobile cellular and networks. An ideal video monitoring solution , when in areas with wired or no WiFi access .

The Onvif support connect computer and NVR .

Ideal for: Hotels, vacation homes, campers, RV, or trailers Workplace and warehouse security Farms, ranch, or stables

US Version : Supported Countries Are United States, Canada And Mexico.NOT SUPPORT OTHER COUNTRIES


  • Mobile Cellular : Supports 4G-LTE networks connections . wire-free mobile HD security camera .it Suitable for outdoor areas that without WiFi (such school ,villa ,farm ) .
  • ONVIF protocol: Use the standard ONVIF 2.6 protocol to interface with most back-end products(NVR) , support view video by computer ,save power for cellphone
  • HD1080P IP66 Camera: HD1080P surveillance camera boasts IP66 standard waterproof rating to ensures perfect security monitoring in all conditions weather. The -4 °F – 140 °F temperature operational range ensures the 4G camera works both indoors and outdoors.
  • Night Vision : Remotely listen via mobile App even in the dark with the IR LED night vision up to 66 feet.
  • Operating Steps :The first, Connect the network cable ,and insert sim card . Sign in the 192.168.1.86 via computer 's IE ,the account is admin , password is 123456 . After logging in to the device, click Settings - Network Settings - 4G - Dialing Settings to check whether the dialing status is successful. Please download the manniu app by mobilephone ,and sign in . Scan the QR code set app .The last disconnect the network cable . the 4G will be connect


pattern  4G HD IP Camera
Model Number I20AE
Camera Video Resolution HD1080P(1920x1080)
Image sensor 1/2.7" 2.0M CMOS
Video compression H.264/265
Lens 3.6mm
Min.Illumination 0Lux/F1.2(Color),                                                         0.1Lux/F1.2(IR on)
Angle of View 90°
Number of Infra-Red LEDs 30
Night Vision Distance 25M
Micro SD 128G
Wide Dynamic Range 70dB
Onvif Onvif2.4
IR Cut Filter YES
General Housing Metal
Color White
Bi-directional interc YES
External Power Supply DC 12V 2A
Operating Temperature -4 °F – 140 °F /-20 °C – 60 °C
4G
Europe Marketing:
FDD-LTE:B1/B2/B3/B5/B7/B8/B20
TDD-LTE:B38/B40/B41(120MHz)

North America Markting:
FDD-LTE:B2/B3/B4/B5/B12/B17/B25/B26/B66
TDD-LTE:B41(200MHz)

Southeast Asia and South America Marketing:
FDD-LTE:B1/B2/B3/B5/B7/B8/B28
TDD-LTE:B41(200MHz)

Weatherproof Rating IP66

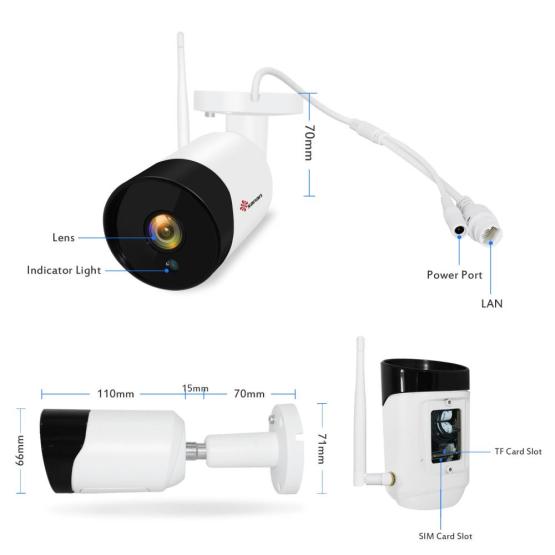

Dimension 195*φ70mm
Packing Dimension(L x W x H) 200*105*100mm
Gross Weight/Net Weight 0.55/0.36Kg
Packaging Contents
Camera 1
Mounting Screws Bag 1
Waterproof rubber plug 1
User's Manual For Camera 1
Desiccant 1
Antenna 1
SIM insertAccording to the picture insert SIM card , and connect adapter power .
