Basic Info

Model No.: SA-N1116P

Video Input/Output: 16 Channel

Audio: with Audio

Video File Logging Mode: Alarm Recording, Motion Detection Recording, Video Manual

Hard Disk Size: 8TB

Hdd Supported: 1

Type: PC Plug-in Type

Name: 16CH H.265 Network Video Recorder

Channel: 16CH

Compression: H.265/H.264

Storage Port: 1*6T

Voltage: DC12V/2A

Additional Info

Packaging: gift box

Productivity: 100000 Per week

Brand: Sanan

Transportation: Ocean,Land,Air,By express

Place of Origin: Shenzhen,China

Supply Ability: 200000

Certificate: ISO9001

HS Code: 8523501390

Port: Shenzhen Shekou,Shenzhen Yantian

Product Description

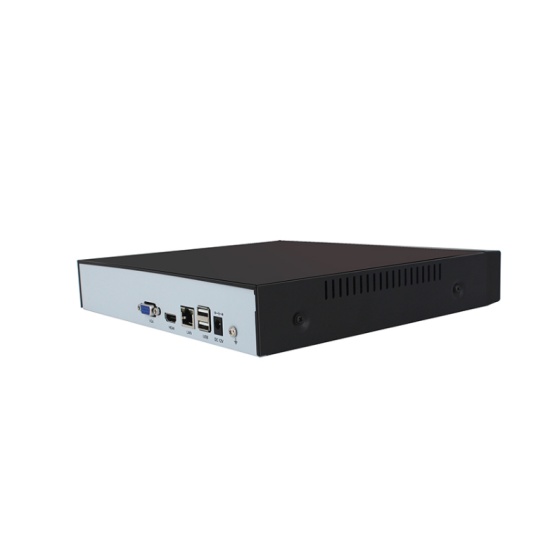

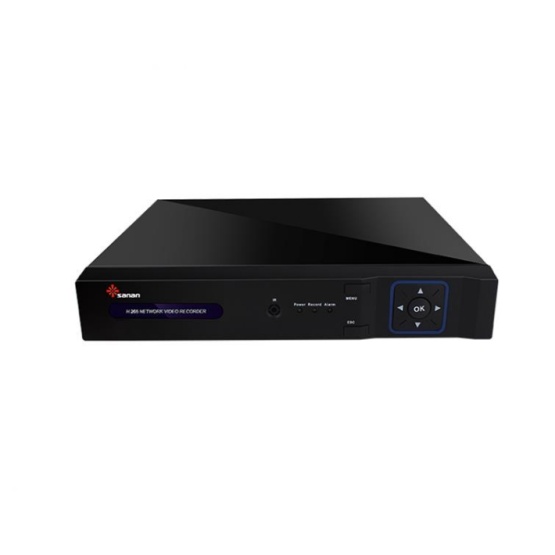

16 Channel H.264/H.265 NVR

Product specifications

(Network Video Recorder 1080P) Name: 16CH H.265 Network Video Recorder

Compression: H.265/H.264

IPC Input: 16CH

(NVR 1080P Security System) Input Bandwidth: 80Mbps

Max. Decode Capability：4ch 1080P@30FPS / 1ch 4K@30FPS

IP Channel Resolution：(Main-Stream) up to 3840×2160, (Sub-Stream) up to D1

(NVR 1080P) Storage Port：1*6T

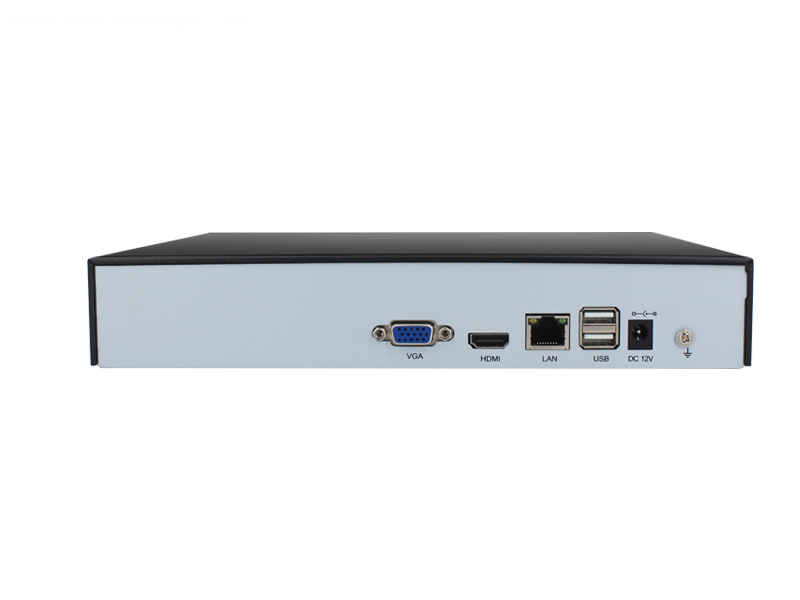

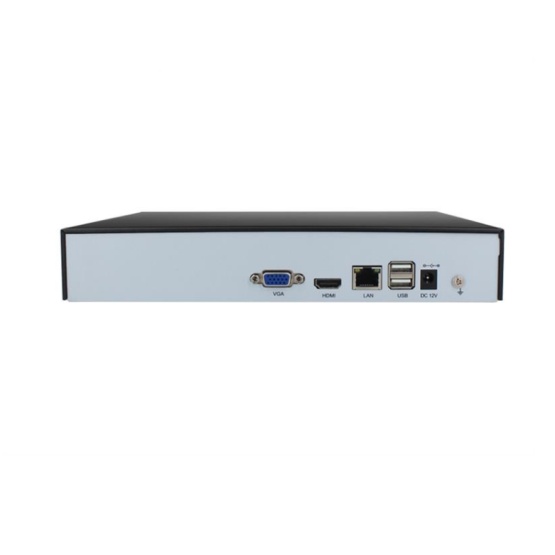

Display output：1*VGA & 1*HDMI

(1080P Wireless NVR) Playback：Up to 16ch

Audio input：1

Audio Output: 1

(NVR Full HD 1080P)USB：2*USB

Power supply：DC12V/2A

(1080P NVR Camera System) H.265 video decoding, support access H.265 and H.264 IPC

Access to network camera that comply with ONVIF,RTSP standards and many mainstream vendors

VGA, HDMI synchronous output, HDMI output resolution can be up to 4K, VGA output resolution can be up to 1920*1080

One-click to add a network camera

Up to 8MP camera living, recording and playback

Access bandwidth up to 80Mbps, support up to 16 channels living and recording

Up to 16 channels synchronous playback, decoding capability up to 4 channels 1080P@30fps

Upload snapshot and video backup to third-party cloud service, like Dropbox, Google Drive

Built-in cloud and P2P transfer service, achieve access by website, mobile application(VSS Mobile),PC client, support alarm push

Support UPNP, SMTP, SSL email alarm
